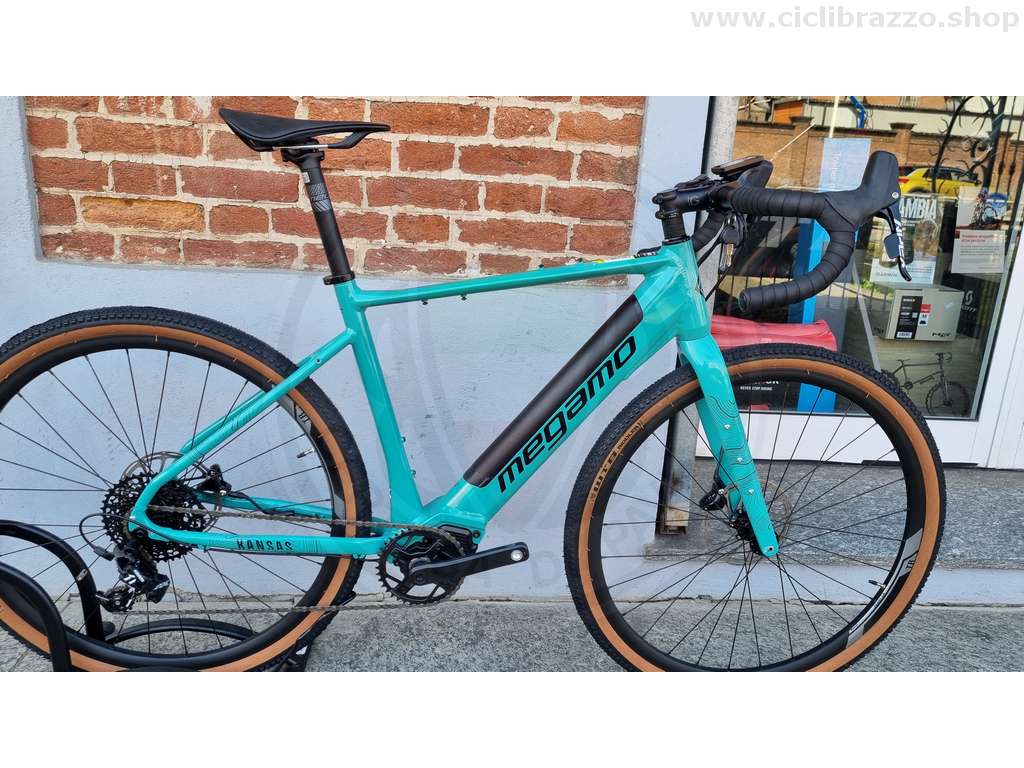

MEGAMO KANSAS

MEGAMO KANSAS

KEY FEATURES
· Aluminum frame with fully integrated battery specific e-Gravel with central motor and internal wiring
· Carbon fork with flat mount
· SRAM Apex 1x12s drivetrain
· SRAM Apex brakes
· 250W and 65Nm central motor
· Integrated 36V and 504 Wh battery

• Aluminum e-Gravel frame, Central motor, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc 12x142

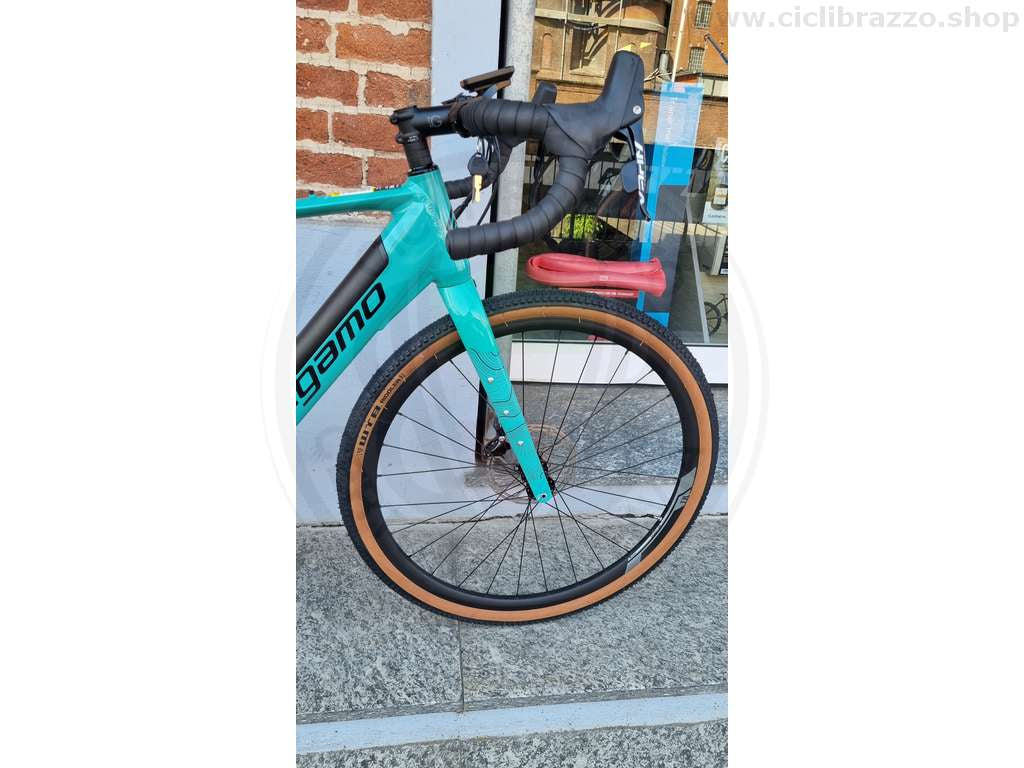

• Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
• FSA Tapered Headset

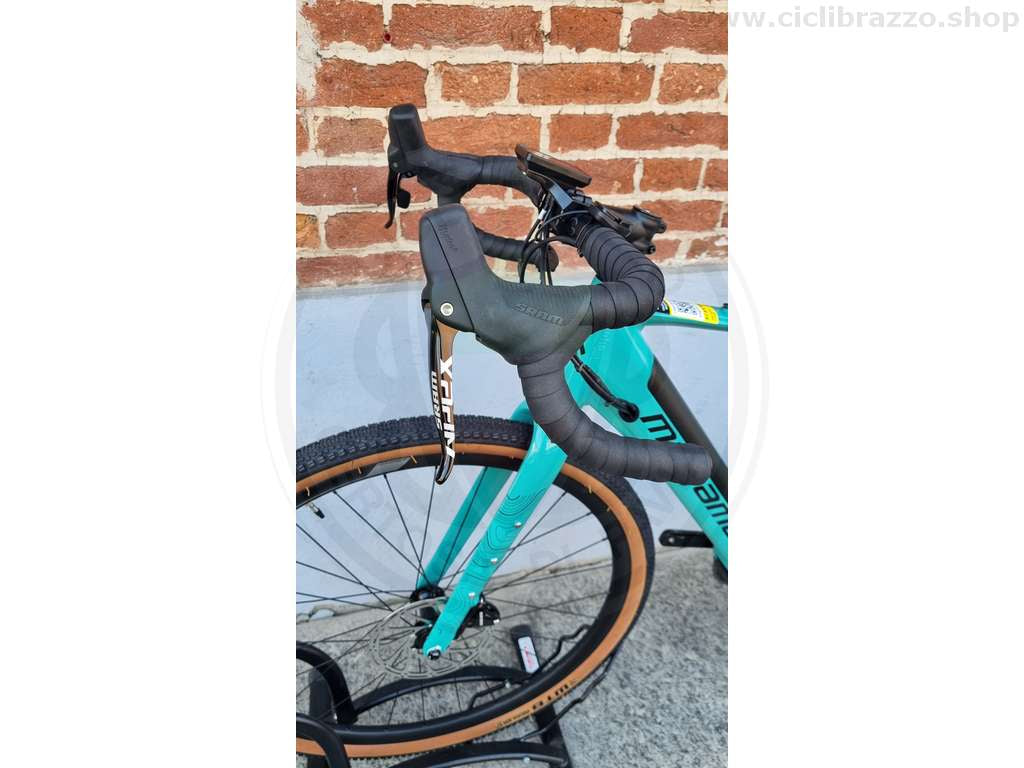

• Sram Apex1 1x11s shifters

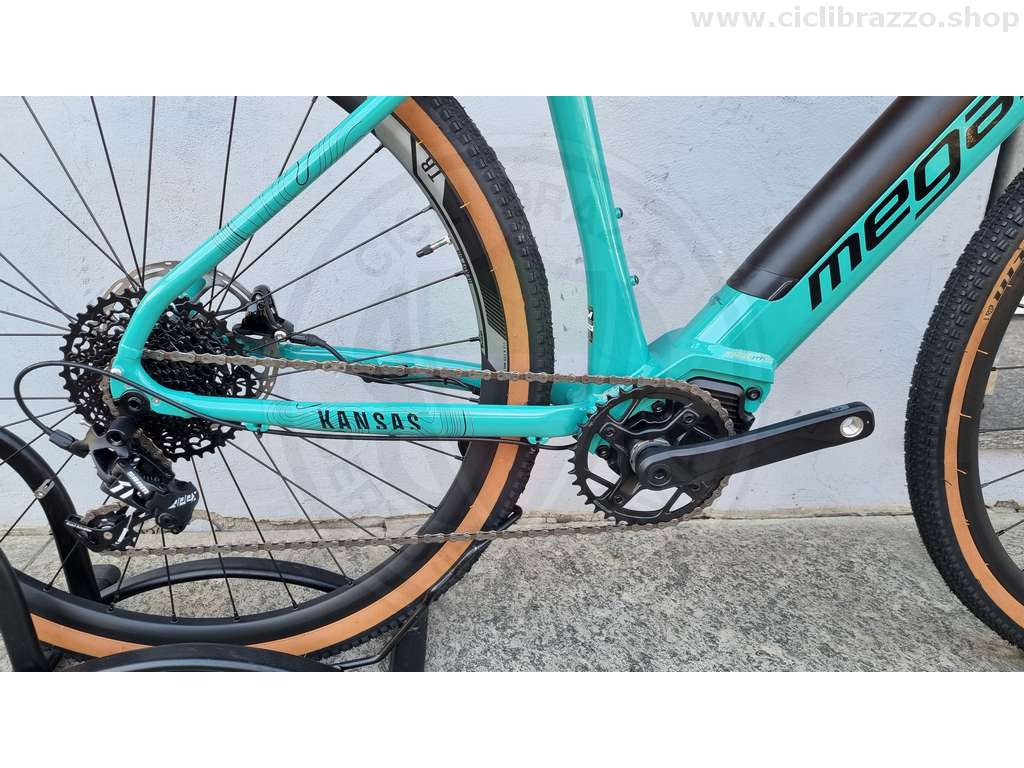

• Sram Apex1 1x11s Rear Derailleur
• FSA 38T crankset

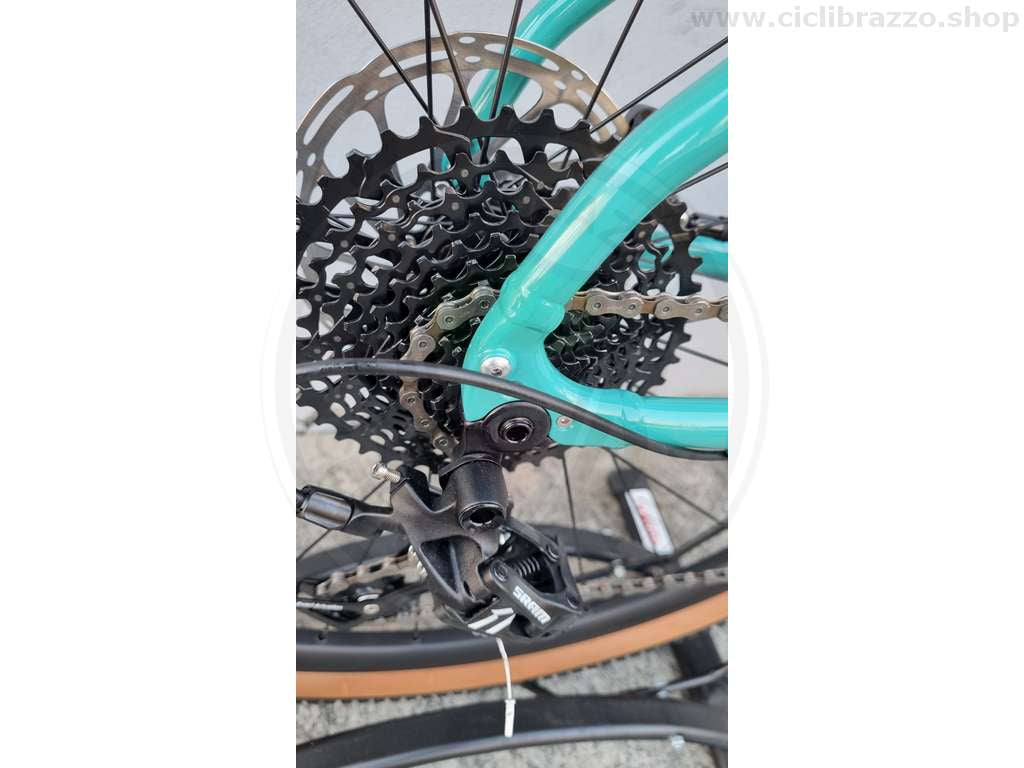

• Sram Apex1 1x11s 11-42t cassette
• Sram Apex1 brakes
• WTB Riddler 700 x 45c Tan Sidewall Tires
• Megamo Gravel GR 700 Wheels - TLR

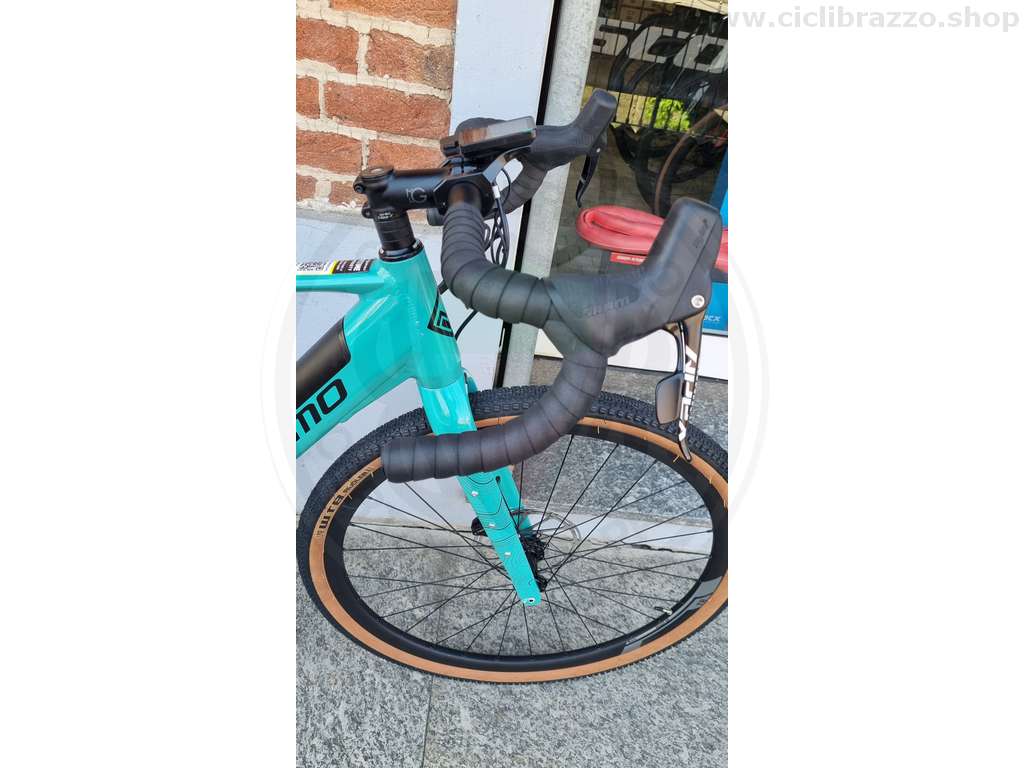

• Megamo Specific Gravel HB FOV Compact handlebar
• Megamo FOV handlebar stem
• Megamo 27.2mm seatpost
• Sellie Italia Model X saddle
•

• Megamo e-Gravel central motor 200W 65Nm
• Integrated battery (Li-Ion) 36v - 14 Ah - 504 Wh
• Display Megamo LCD Screen

For lovers of long trails and gravel, here comes the Megamo Kansas, a bike that will allow you to discover new trails while providing the assistance you need at all times. Feel a greater sense of speed, increase the demand for your routes, and reach places that until now seemed unreachable. Discover this bike with great range thanks to its large-capacity battery (504Wh).


It will allow you to enjoy long days on the bike, covering more miles and conquering greater elevation gains. The Megamo Kansas has a motor located in the central axle, thus placing the weight of the bike centrally, increasing its stability and maneuverability, providing a much more natural ride. This bike's aesthetic is very minimalist and clean thanks to its battery fully integrated into the frame and internal wiring.

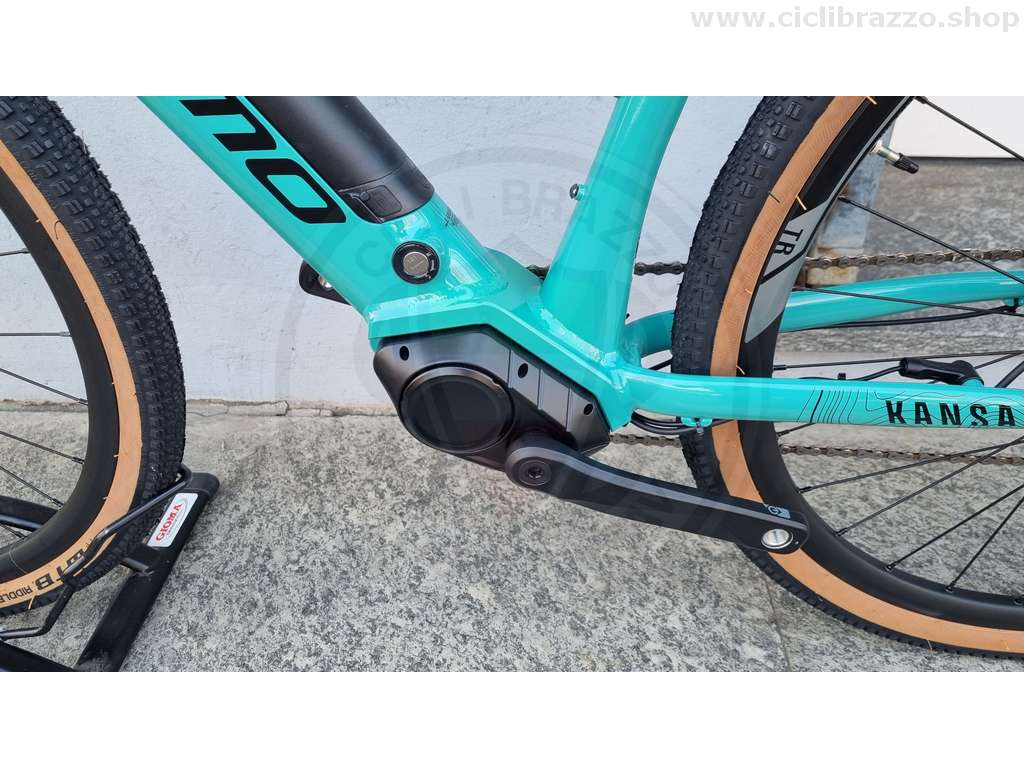

MID-ENGINE
Thanks to the integrated torque control, the mid-drive motor delivers just the right amount of power at the right time. With a power ratio of 200W and a torque of 65Nm, it's one of the most balanced bikes in its segment. The motor's light weight, less than 2.5kg, and its low center of gravity ensure handling that's ideal for gravel riding. The helical gear system, combined with the materials chosen, will allow you to enjoy a quiet ride on trails and paths. The motor's discreetness and integration are excellent. The mid-drive motor's position favors a geometry with short chainstays for an e-bike.

The efficiency of over 80% is remarkable when we exceed 25 km/h, giving us a much more natural pedaling experience when we don't use the assistance. Its protective side covers are able to withstand adverse temperatures and weather conditions. The motor base is protected by a highly resistant aluminum casing.


BUILT-IN BATTERY

Fully integrated battery with a capacity of 504Wh. Its large capacity will allow you to enjoy longer rides.

Easy battery removal via an anti-theft key security system.

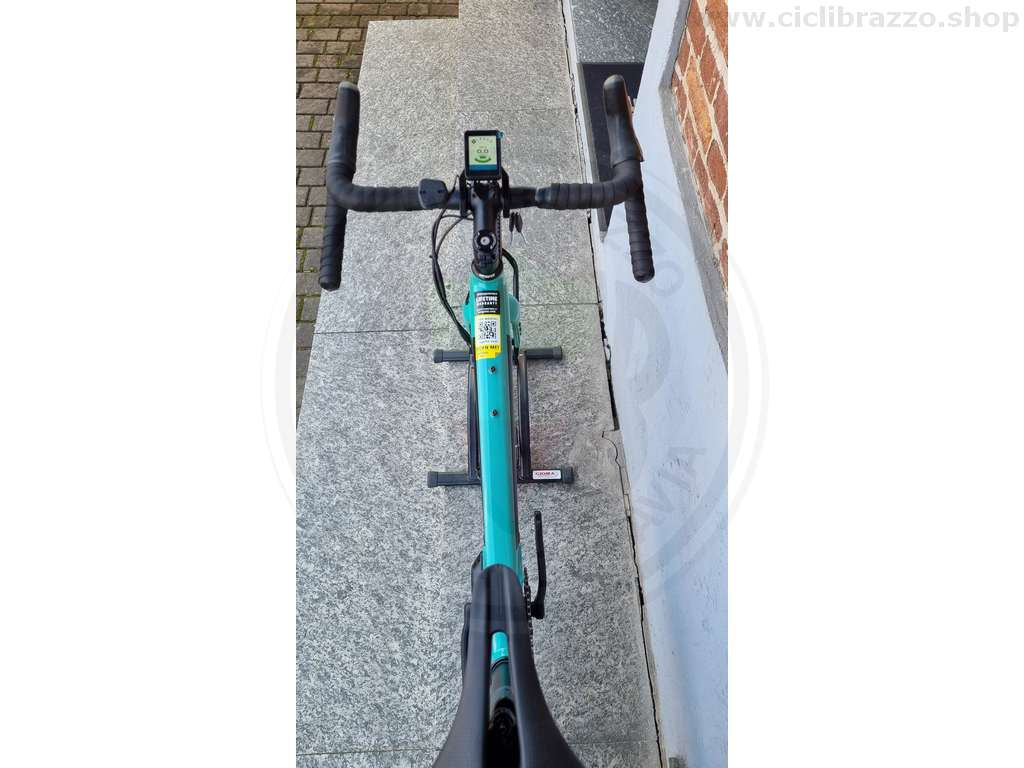

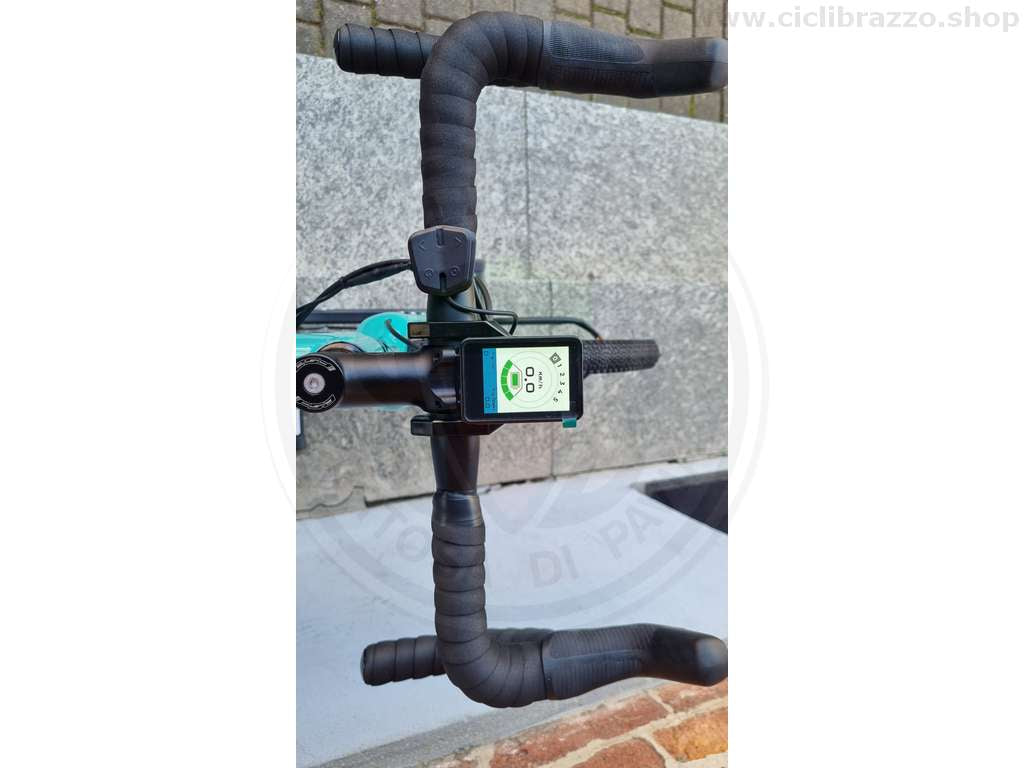

SCREEN

Check all the information on the LCD display: kilometers traveled, current speed, assistance level, and available battery life. This unit works with the handlebar controls, with information from the torque sensor on the bottom bracket, and the speed sensor.

The 5 levels of assistance are a guarantee to adapt the power to your riding style.

When you need to push the bike, you also have electric assistance up to 4 km/h to overcome obstacles and ramps.

DESIGN AND DEVELOPMENT
The Kansas frame supports a variety of wheel sizes, from 650bx47, 700cx37, and 700cx50. You decide which size best suits your needs and whether you prefer cushioning over speed. A generous wheel arch makes everything possible, even on muddy terrain.

Its character is very versatile, as it allows its users to discover new routes, regardless of their level of experience, anyone can enjoy this bicycle and all its possibilities.

ADVENTURER

Designed to accommodate all the bikepacking accessories you can imagine. This is one of the best options for enjoying a discipline like bikepacking, which has already become a way of life for many. Some of the largest travel bag manufacturers have chosen us to develop their products.


DESIGN
Discover the new Megamo Kansas in its two new color variations that won't go unnoticed.

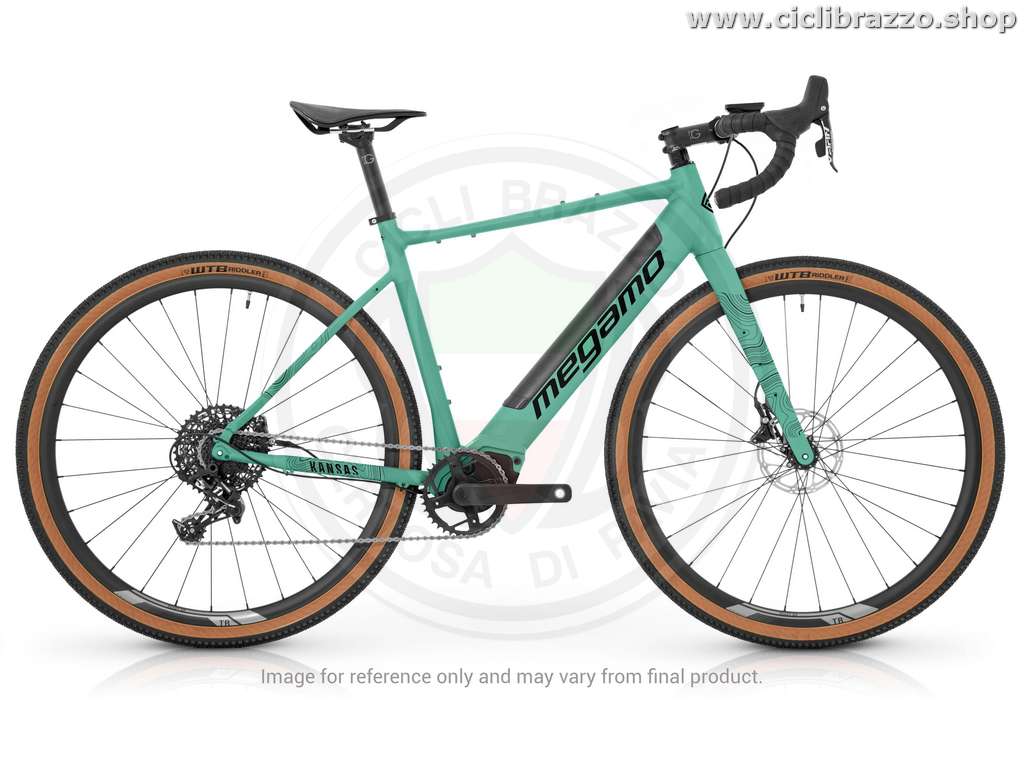

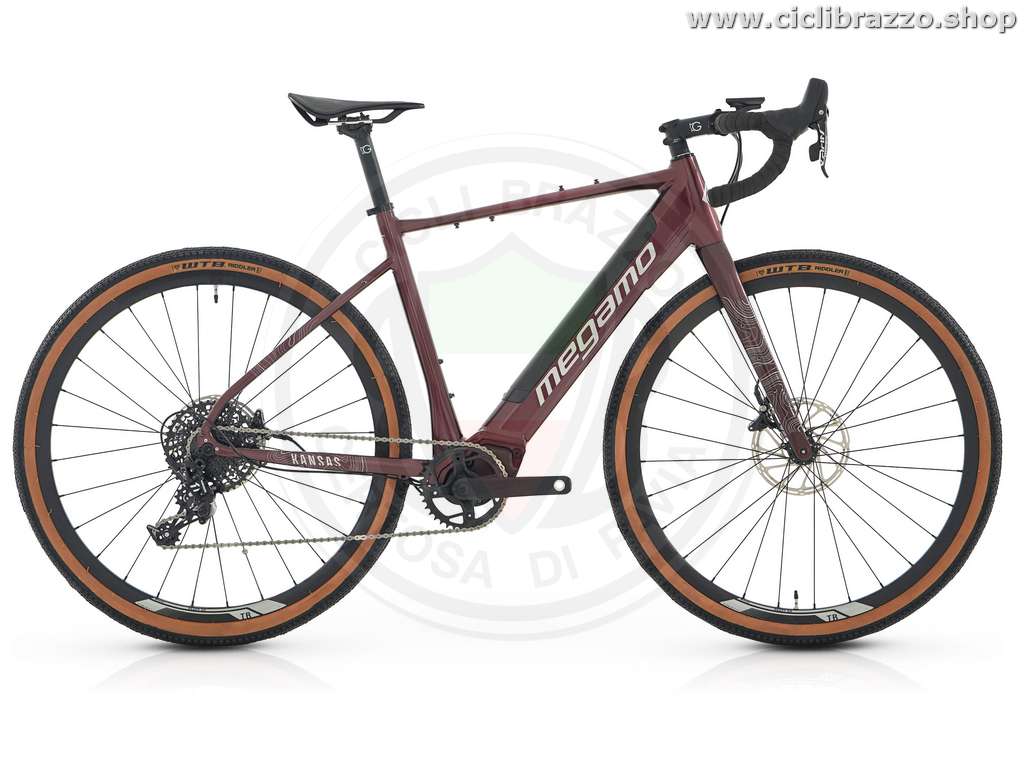

Garnet, an expression of elegance and refinement that evokes mystery and depth. Turquoise, which adds a touch of freshness and serenity.
